LUTs Manager Documentation
Install Via ZXPinstaller

  • ZXP installer Will Automatically install the extension

Step 1 : Download ZXPInstaller

ZXPInstaller is a simple, drag-and-drop utility for installing .zxp files into Adobe applications.

Download The Version For Operating System (Mac or Windows).

Step 2 : Install the Extension

  1. Open ZXPInstaller.
  2. Drag and drop your .zxp file into the ZXPInstaller window.
  3. The installer will manage the installation process.

Step 3: Restart Adobe Application

Close and reopen any Adobe application where you want the extension to appear.

Check for the Extension:
Open the application, Go to Window > Extensions
menu to see if your extension is listed.

If this does not work for you you can install manually.
​See instructions below.

  • Manual Installation WINDOWS
  • Manual Installation MAC OS

(Manual Installation)-WINDOWS

  • If the ZXP installer fails to install LUTs Manager , You can install it manually by following the instructions below (Windows)

Step 1 : Extract the Zip File
​"LUTs-Manager.zip"

Extract the contents of your .zip file to a folder.

* Right Click on "LUTs-Manager.zip" file > "Extract Here".

Step 2 : Locate the Extensions Folder
​​Paste the Extracted Folder

Copy the folder you extracted from the .zip file into the extensions directory.


Step 3 :  Registry Verification

Open Command Prompt (type CMD in the search bar)
Paste the following lines and press Enter

REG ADD HKEY_CURRENT_USER\Software\Adobe\CSXS.11 /v PlayerDebugMode /t REG_SZ /d 1 /f
REG ADD HKEY_CURRENT_USER\Software\Adobe\CSXS.10 /v PlayerDebugMode /t REG_SZ /d 1 /f
REG ADD HKEY_CURRENT_USER\Software\Adobe\CSXS.9 /v PlayerDebugMode /t REG_SZ /d 1 /f
REG ADD HKEY_CURRENT_USER\Software\Adobe\CSXS.8 /v PlayerDebugMode /t REG_SZ /d 1 /f
REG ADD HKEY_CURRENT_USER\Software\Adobe\CSXS.7 /v PlayerDebugMode /t REG_SZ /d 1 /f
REG ADD HKEY_CURRENT_USER\Software\Adobe\CSXS.6 /v PlayerDebugMode /t REG_SZ /d 1 /f
REG ADD HKEY_CURRENT_USER\Software\Adobe\CSXS.5 /v PlayerDebugMode /t REG_SZ /d 1 /f
REG ADD HKEY_CURRENT_USER\Software\Adobe\CSXS.4 /v PlayerDebugMode /t REG_SZ /d 1 /f

Step 4: Restart Adobe Application

Close and reopen any Adobe application where you want the extension to appear.

Check for the Extension:
Open the application, Go to Window > Extensions
menu to see if your extension is listed.

(Manual Installation)-MAC OS

  • If the ZXP installer fails to install LUTs Manager , You can install it manually by following the instructions below (Mac Os)

Step 1 : Extract the Zip File
​"LUTs-Manager.zip"

Use a tool like Unarchiver to extract the .zip file.

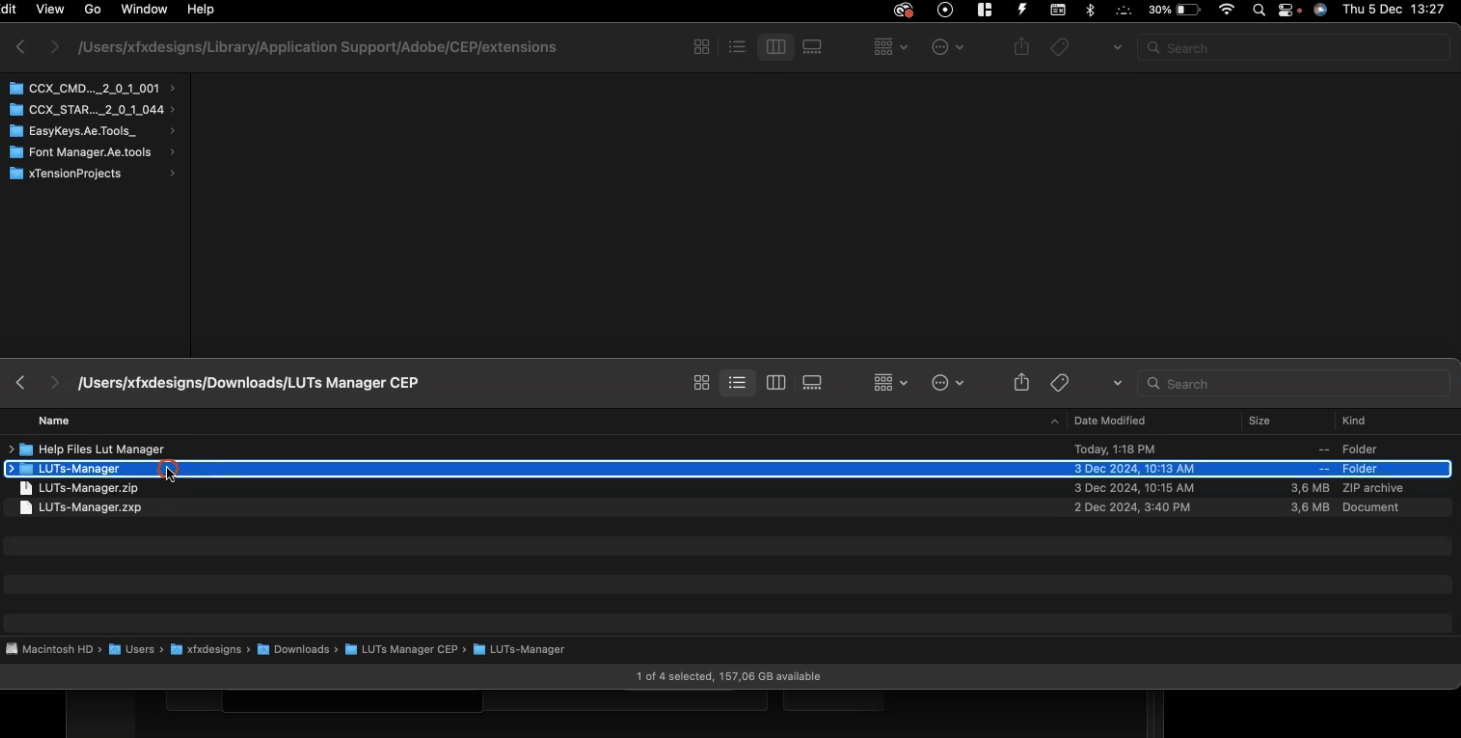

Step 2 : Locate the Extensions Folder
​​Paste the Extracted Folder

Move the extracted folder to the extensions directory.

Go to /Library/Application Support/Adobe/CEP/extensions/

* Access the Library Folder: In Finder's menu bar at the top, click on Go. Hold down the Option (⌥) key. You will see the hidden Library option appear in the dropdown menu. Click on Library.

Step 3 :  Registry Verification

Open Terminal from Spotlight ("Command (⌘) + Space", type "Terminal"and press Enter).
Paste the following lines and press Enter

defaults write com.adobe.CSXS.11 PlayerDebugMode 1
defaults write com.adobe.CSXS.10 PlayerDebugMode 1
defaults write com.adobe.CSXS.9 PlayerDebugMode 1
defaults write com.adobe.CSXS.8 PlayerDebugMode 1
defaults write com.adobe.CSXS.7 PlayerDebugMode 1
defaults write com.adobe.CSXS.6 PlayerDebugMode 1
defaults write com.adobe.CSXS.6.1 PlayerDebugMode 1
defaults write com.adobe.CSXS.5 PlayerDebugMode 1
defaults write com.adobe.CSXS.4 PlayerDebugMode 1

Step 4: Restart Adobe Application

Close and reopen any Adobe application where you want the extension to appear.

Check for the Extension:
Open the application, Go to Window > Extensions
menu to see if your extension is listed.

UI Navigation

  • LUTs Manager offers a comprehensive array of user interface options that enhance your workflow efficiency and usability. Key features include:

    • Responsive Design
    • Comparison Slider
    • Context Menu
    • Drag to Scroll
    • Shift Preview Real-Time
    • Grid Options
    • Aspect Ratio Options
    • Predictive Search

Responsive Design

Resize The UI to fit your Workspace.

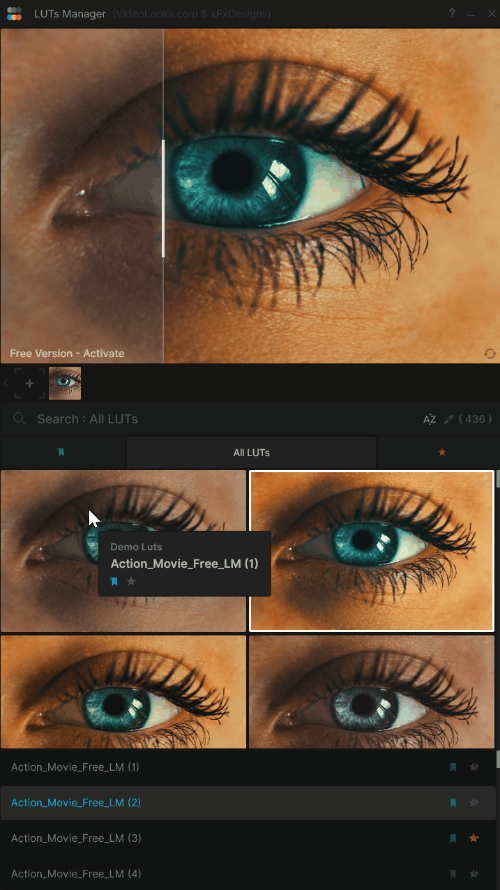

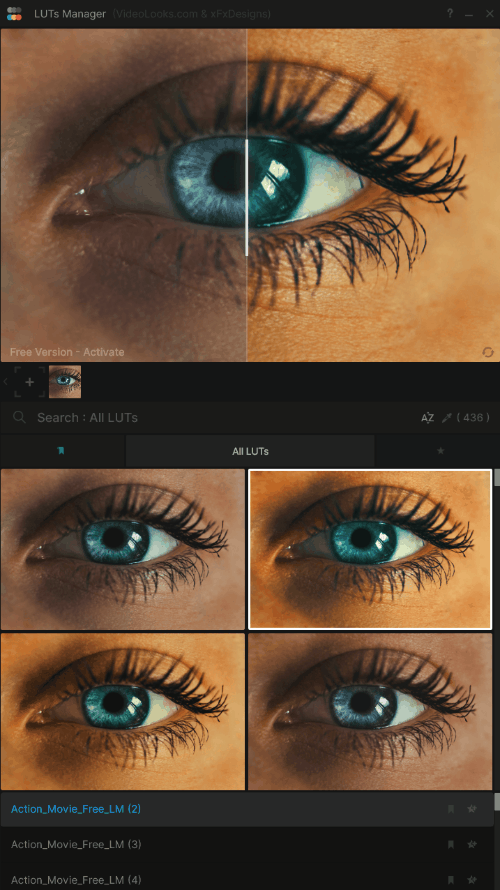

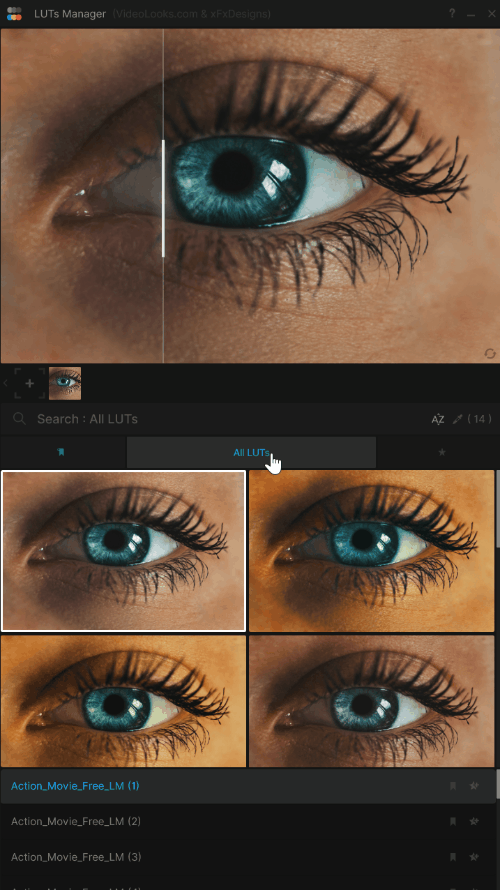

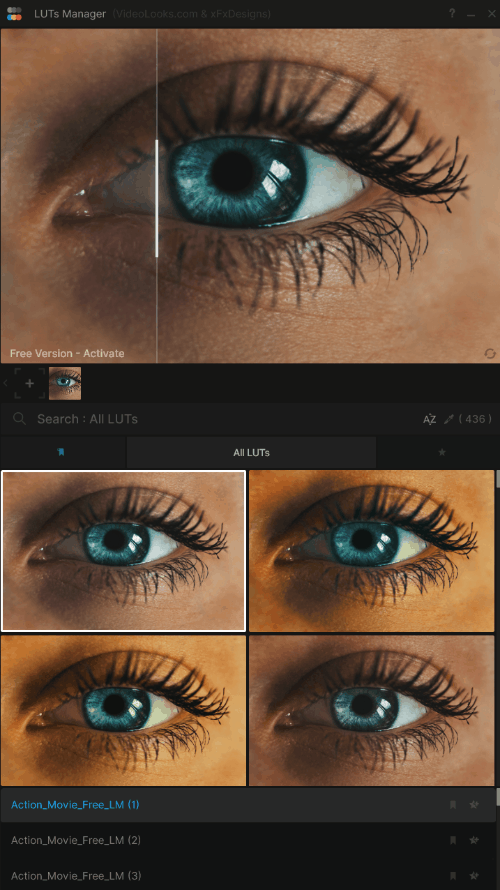

Comparison Slider

Before and After View Slider.

Context Menu

Access a variety of commands and settings quickly.

Drag to Scroll

Effortlessly navigate your LUTs library drag-to-scroll functionality.

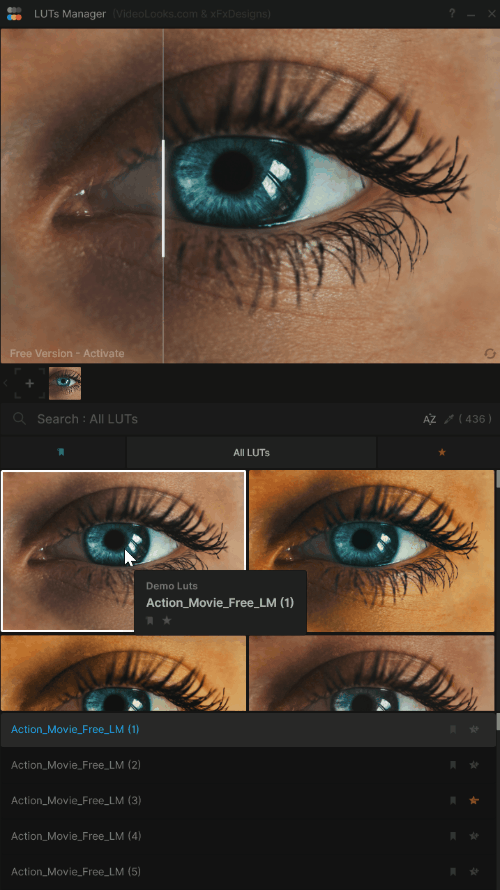

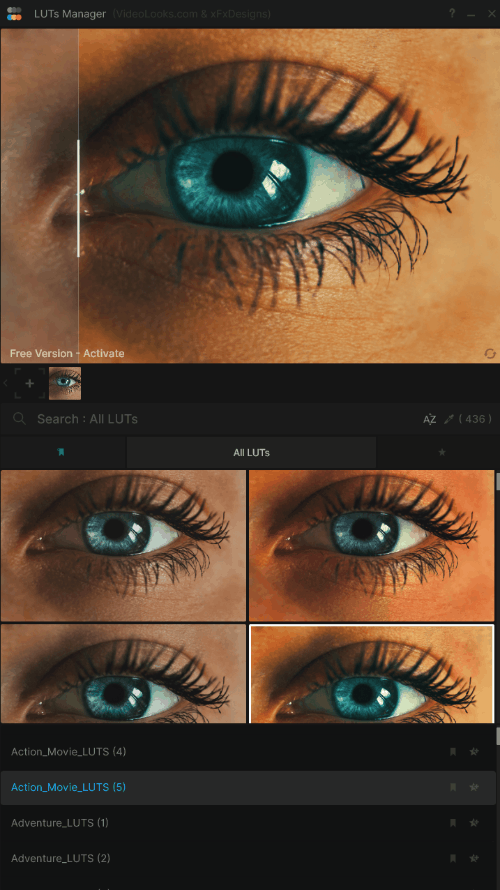

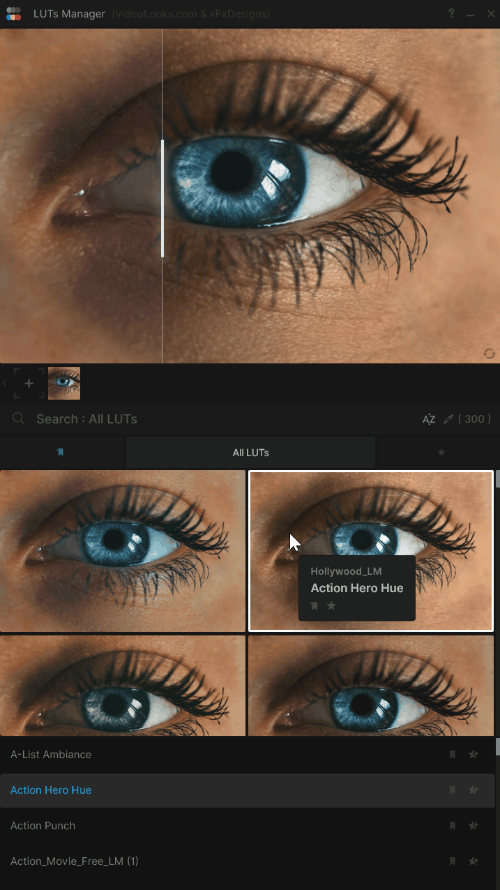

Shift Preview Real-Time

Preview LUTs instantly by Hovering With The
Shift key Pressed.

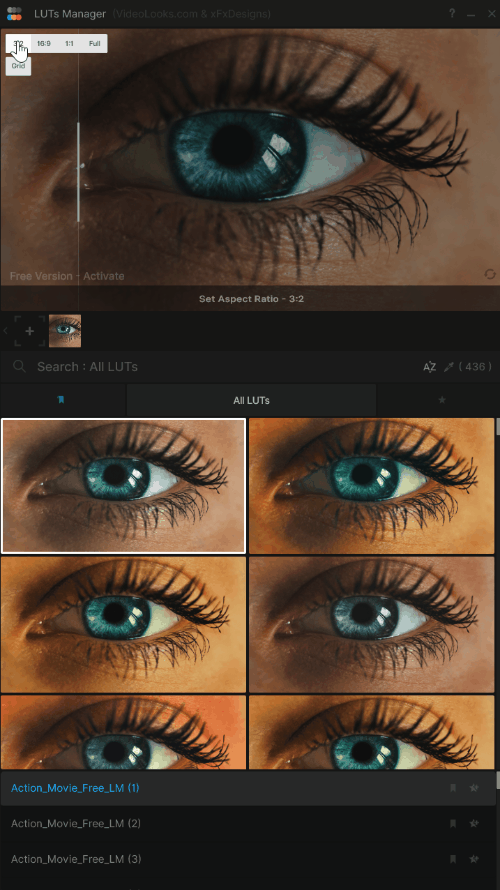

Aspect Ratio Options

Easily adjust and preview LUTs in various
aspect ratios.

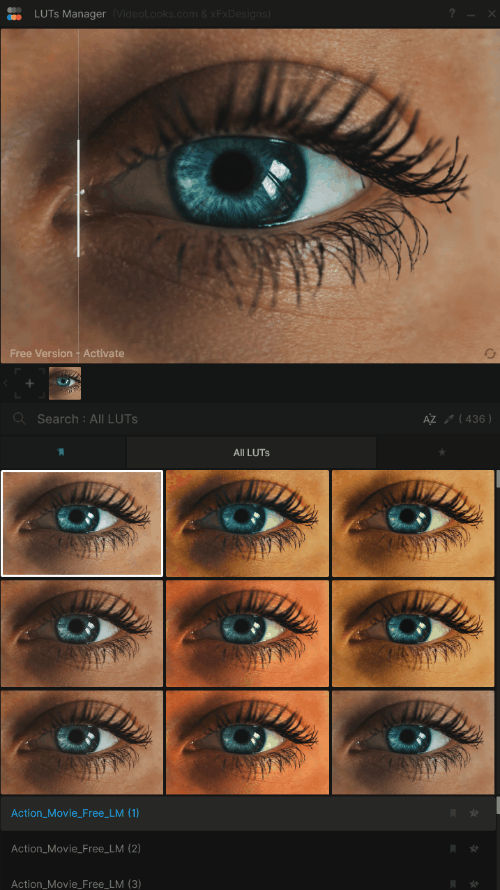

Grid Options

Customize the display grid to suit your preferences, enhancing the organization and visibility of LUTs.

Predictive Search

Quickly find the LUTs you need with a smart search feature and by tag search, making browsing more intuitive.

Custom Image Preview

  • Capture Current Frame for Preview (CEP)
  • Multi-LUT Preview
  • Video Frame Extraction
  • Dynamic Image Management

Capture Current Frame for Preview (CEP)

Seamlessly capture any frame from your project timeline to use as a preview reference, allowing you to test different LUTs on the fly.

Multi-LUT Preview

Simultaneously apply and compare multiple LUTs on selected images, streamlining your color grading process.

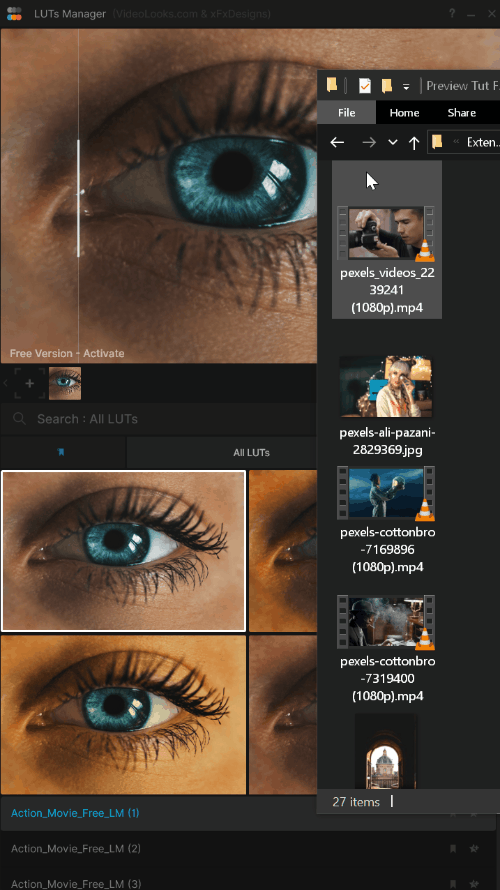

Video Frame Extraction

Extract any frame from video clips to preview how individual LUTs affect different moments or scenes.

Dynamic Image Management

Easily add or remove images from the preview area to tailor your workspace to your current project needs.

Favourites & Bookmarks

  • Add / Remove Favourites
  • Favourites View
  • Add Tags
  • Bookmarks View

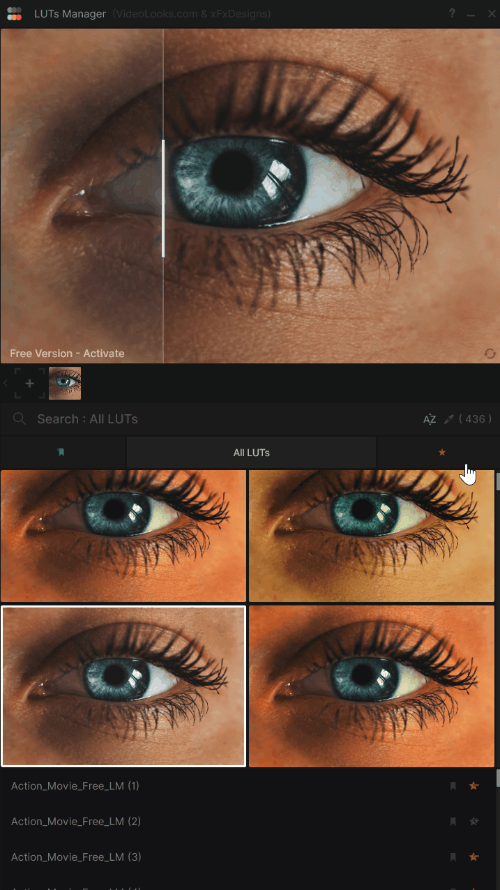

Add/Remove Favourites

Easily manage your favourite LUTs for quick access.

Favourites View

Instantly browse your favourited LUTs.

Add Tags

Categorize and find LUTs quickly with tags.

Bookmarks View

Access and manage your bookmarked LUTs efficiently.

Custom LUTs Directories

  • Add your Custom LUTs Folders ( Standalone )
  • Add Folders to Default Watch-folder
  • Folders View and Reveal In Explorer
  • Add Or Remove Folders (Standalone)

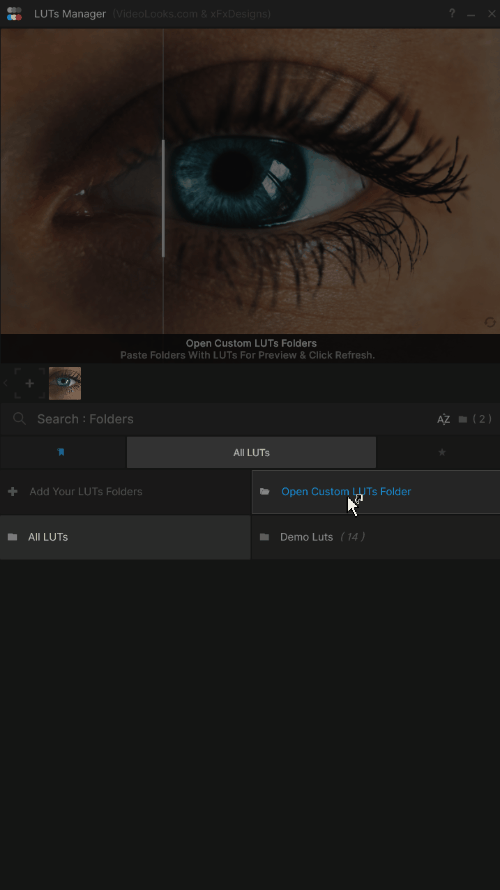

Add your Custom LUTs Folders (Standalone)

Add Custom LUT Folder Directories
These are folders including .cube files on your system.

Add Folders to Default Watch-folder

All your LUT Folders in a single Watch-Folder
Making it easy to manage.

Folders View & Reveal In Explorer

Reveal The Folders With a single click.

In CEP mode it will auto detect all the LUTs
​that are installed by default.
Apply Lut (Copy direct path)

  • Copy The path to the LUT
  • AE Apply LUT via Lumetri Color
  • PR Apply LUT via Lumetri Color
  • Open your Editing Software and apply from the browse option

Copy The path to the LUT

Copy the path to the LUT file so you can paste it into your software's Input LUT or Browse LUT section.

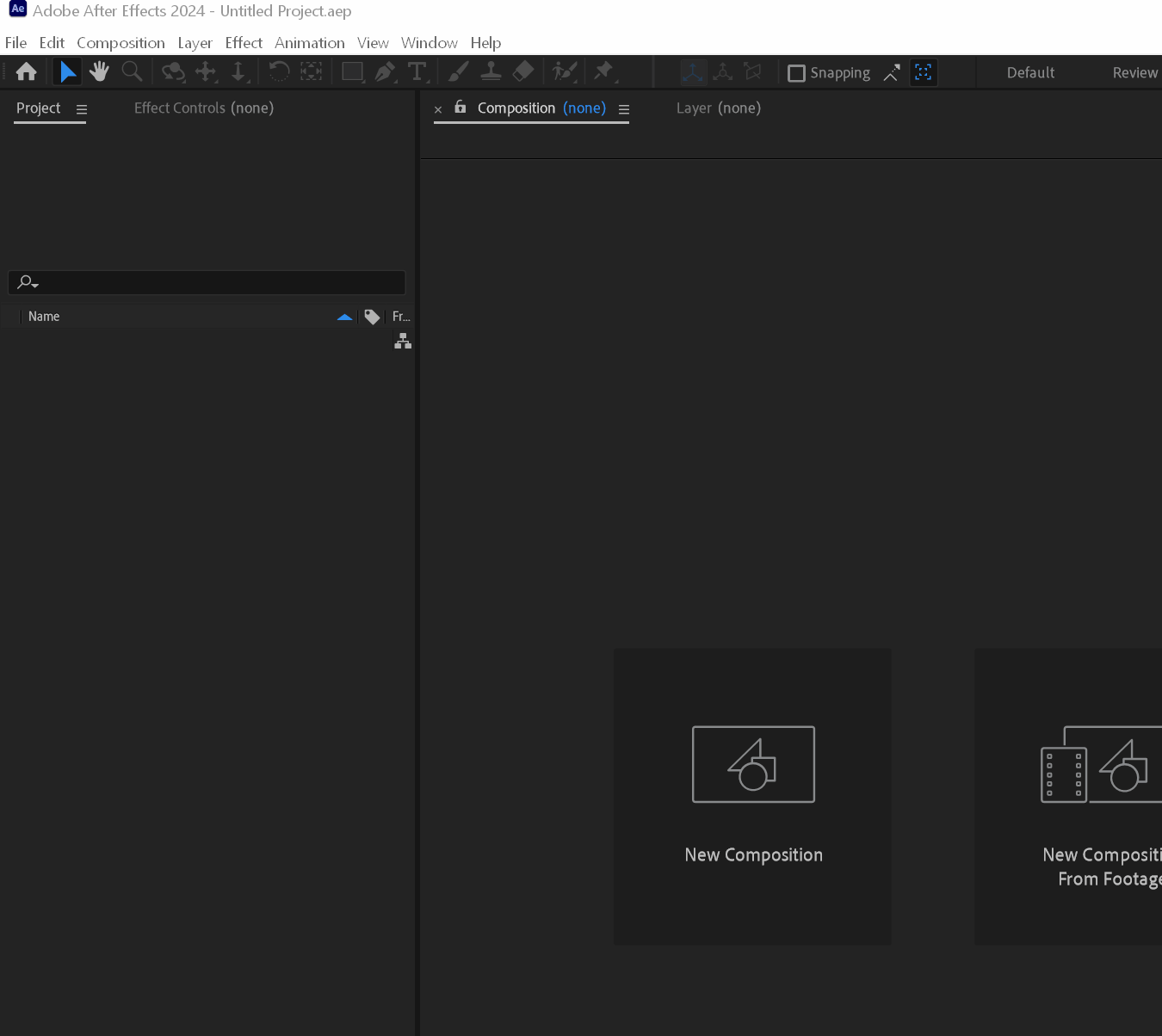

AE Apply LUT via Lumetri Color

  • Add the "Lumetri Color" Effect on your Layer.
  • In the Lumetri FX Controls , locate the
    Creative > Look > expand dropdown and click "Browse".
  • Paste the copied LUT file path (Ctrl+V or Cmd+V) in the file name and click open.

Mac Users: Use Cmd +Shift + G in the file dialog to open the 'Go to the folder:' input box where you can paste the path by Right Click on the input Field And Select Paste And Then Click Open.

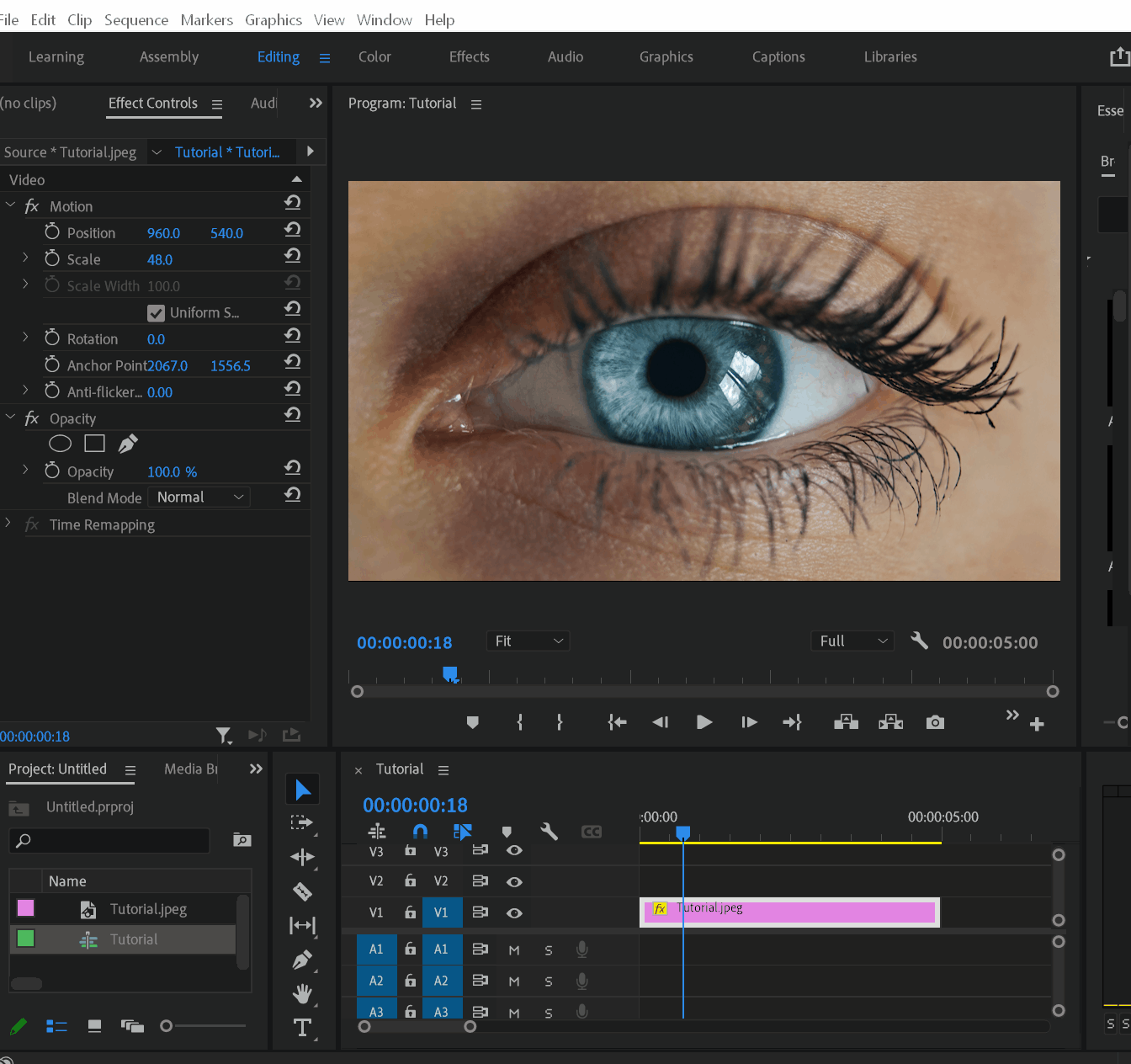

PR Apply LUT via Lumetri Color

  • Add the "Lumetri Color" Effect on your Clip.
  • In the Lumetri FX Controls , locate the
    Creative > Look > expand dropdown and click "Browse".
  • Paste the copied LUT file path (Ctrl+V or Cmd+V) in the file name and click open.
Mac Users: Use Cmd +Shift + G in the file dialog to open the 'Go to the folder:' input box where you can paste the path by Right Click on the input Field And Select Paste And Then Click Open.

LUTs Manager

Revolutionize Your Colour Grading Workflow

  • Instant Preview
  • Effortless Organization
  • Seamless Integration

FAQ

 Why can't I see the "LUTs Manager" in my Window > Extensions menu in Adobe software?

  • Answer: Ensure that the LUTs Manager extension is installed correctly. Follow these steps:
    • Close your Adobe application.
    • Manually install the extension using an installer like ZXPInstaller or follow the manual installation steps provided in the documentation.
    • Reopen your Adobe application and check the Window > Extensions menu again.


Why are the LUTs not updating in the LUTs Manager?

  • Answer: If your LUTs are not appearing updated, try the following methods:
    • Click the "Refresh" icon within the LUTs Manager to reload the LUTs.
    • If the issue persists, completely close and restart the application to ensure all updates are applied.

Contact

Have questions or need help? Our support team is here to assist you.

  • Email Support: xFxDesigns@gmail.com

Feel free to reach out with any issues or inquiries related to LUTs Manager,
and we'll do our best to ensure a swift and helpful response!
